ECSL-4
Description
ECSL-4 Crawler Scissor Lift

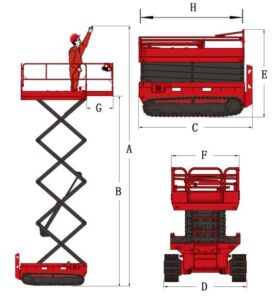

| Dimensions | ||||
| Max Working Height | [A] | 6.00 m | ||
| Max Platform Height | [B] | 4.00 m | ||
| Platform Size | [HxF] | 1.29×0.7 m | ||
| Overall Length | [C] | 1.52 m | ||
| Overall Width | [D] | 1.21 m | ||
| Overall Height(unfolded) | 2.15 m | |||
| Overall Height(folded) | [E] | 1.83 m | ||
| Slide-out Extension Deck | [G] | 0.6 m | ||
| Wheel Base | N/A | |||
| Performance | ||||
| Lift Capacity | 230 kg | |||
| Deck Extended Lift Capacity | 113 kg | |||
| Turning Radius | 0 m | |||
| Lifting/Driving Motor | 48 V/ 2.2 kw | |||
| Lifting Speed | 84/38sec | |||
| Drive Speed-stowed | 1.8 km/h | |||
| Gradeability | 30% | |||
| The Max. Working Slope | 1.5°/ 3° | |||
| Power | ||||
| Power Source(batteries) | 4x 12 V/ 100 ah | |||
| Integrated Charger | 48 V/ 15 A | |||
| Weight | ||||
| Total Weight | 1,200 kg | |||
Configuration:
| Proportional control | Extended platform |
| Automatic braking system | Charging protection system |
| Emergency descent system | Buzzer |
| Strobe lights | Standard transport foklift hole |
| Emergency stop button | Foldable fence |
| Self-locking door | Horn |
| Oil pipe explosion-proof system | Safe maintenance support rod |
| Fault diagnosis system | Continuously variable speed |
| Tilt protection system |

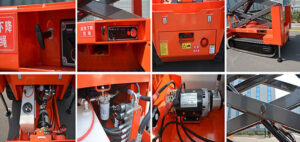

Product details:
