EOSL-12
Description
EOSL-12 Off-road Scissor Lift- KeRey Aerial Lift

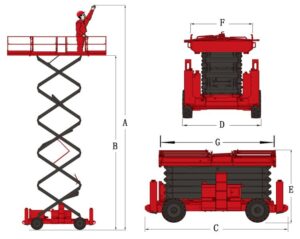

| Dimensions | ||||
| Max Working Height | [A] | 14.30 m | ||
| Max Platform Height | [B] | 12.30 m | ||
| Platform Size | [FxG] | 2.88m×1.52 m | ||
| Overall Length(with legs) | [C] | 3.84 m | ||
| Overall Length(no legs) | 3.19 m | |||
| Overall Width | [D] | 1.76 m | ||
| Overall Height(unfolded) | 2.74 m | |||
| Overall Height(folded) | [E] | 1.97 m | ||
| Slide-out Extension Deck | 1.43 m | |||
| Wheel Base | 2.29 m | |||
| Performance | ||||
| Lift Capacity | 363 kg | |||
| Deck Extended Lift Capacity | 136 kg | |||
| Turning Radius | 2.15/4.85 m | |||
| Lifting/Driving Motor | 48 V/ 4.5 kw | |||
| Lifting Speed | 45/46 sec | |||
| Drive Speed-stowed | 6.0 km/h | |||
| Drive Speed-raised | 0.45 km/h | |||
| Gradeability | 40% | |||
| The Max. Working Slope | 1.5°/ 3° | |||
| Tyre | 26×12-16.5 | |||
| Power | ||||
| Power Source(batteries) | 48 V/ 320 ah | |||
| Integrated Charger | 48 V/ 35 A | |||
| Walking Motor | 2×32 VAC/3.3 kW | |||
| Lifting Motor | 48 VDC/3.8 kW | |||
| Weight | ||||
| Total Weight | 5,150 kg(with legs) | |||
| 4,750 kg(no legs) | ||||
Configuration:
| Trumpet | Two-way extension platform |
| Timer | Hand brake release |
| Strobe lights | Automatic braking system |
| Emergency pump | Emergency stop button |
| 4X4 drive | Battery charging |
| Driving confirmation | Self-weight descending system |
| Folding fence | Explosion-proof system for tubing |
| Action beep | Fault diagnosis system |
| Tilt alarm | Full proportional joystick control |
| Platform self-locking door | Load sensing system |
| Floating bridge chassis | Fixed and Lifting Points |
| Lanyard attachment point | Automatic hydraulic leveling outriggers |
