Compact Icebreaker

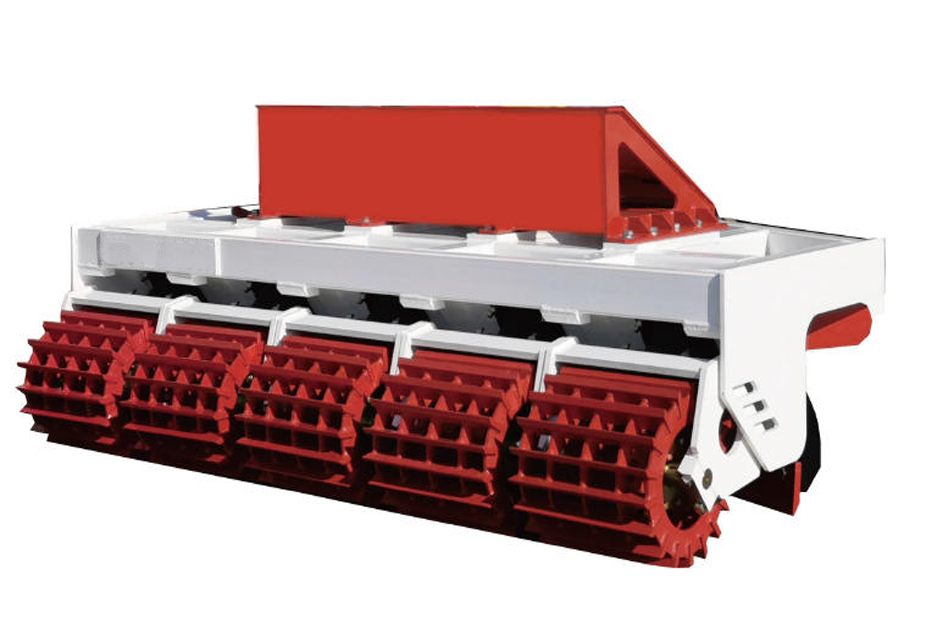

Compact Rotary Icebreaker
The machine can crush, collect, and side-discharge ice and snow from road surfaces in a single operation.
The front crushing system is equipped with five sets of independently floating ice-breaking wheels, which automatically adapt to uneven road surfaces by moving up and down. This ensures thorough ice breaking without causing damage to the pavement.
The rear side-discharge system consists of two independently floating collection blades, which can be manually switched to either the left or right side for flexible snow discharge. When encountering obstacles, the blades automatically tilt backward to avoid collisions, thereby preventing damage to the equipment.
Description
Compact Rotary Icebreaker
Key Features Wide working width, high efficiency – Ensures fast and effective operation.All-in-one function – Breaks, collects, and side-discharges ice and snow in a single pass, clearing roads efficiently.Reliable structure – Simple maintenance with low failure rate for long-term stable operation.High-strength icebreaking – Equipped with replaceable toothed ice-breaking wheels for superior crushing performance.Corrosion-resistant finish – Electrostatic coating provides excellent resistance to salt and corrosion.Flexible loader compatibility – Floating connection design allows installation on loaders of different brands and models.Durable bearing design – Ice-breaking wheels use built-in bearings instead of traditional bearing housings, ensuring greater reliability and durability. | |
Technical Specifications | |
Models | EKRI205-5-2 |
Working Width | 2,055 mm |
Overall Dimensions (L × W × H) | 1,805x 2,160x 640 mm (excluding mounting connections) |
Total Weight | 1,250 kg |
Road Contour Adaptation | 60 mm |
Ice-breaking Wheels | 5 sets (welded straight-tooth design) |
Ice-breaking Wheel Size (Dia.x Width) | 350x 350 mm |
Collection Blades | 2 sets |
Snow Discharge Method | Side-discharge blades |
Discharge Angle | 25° left and right |

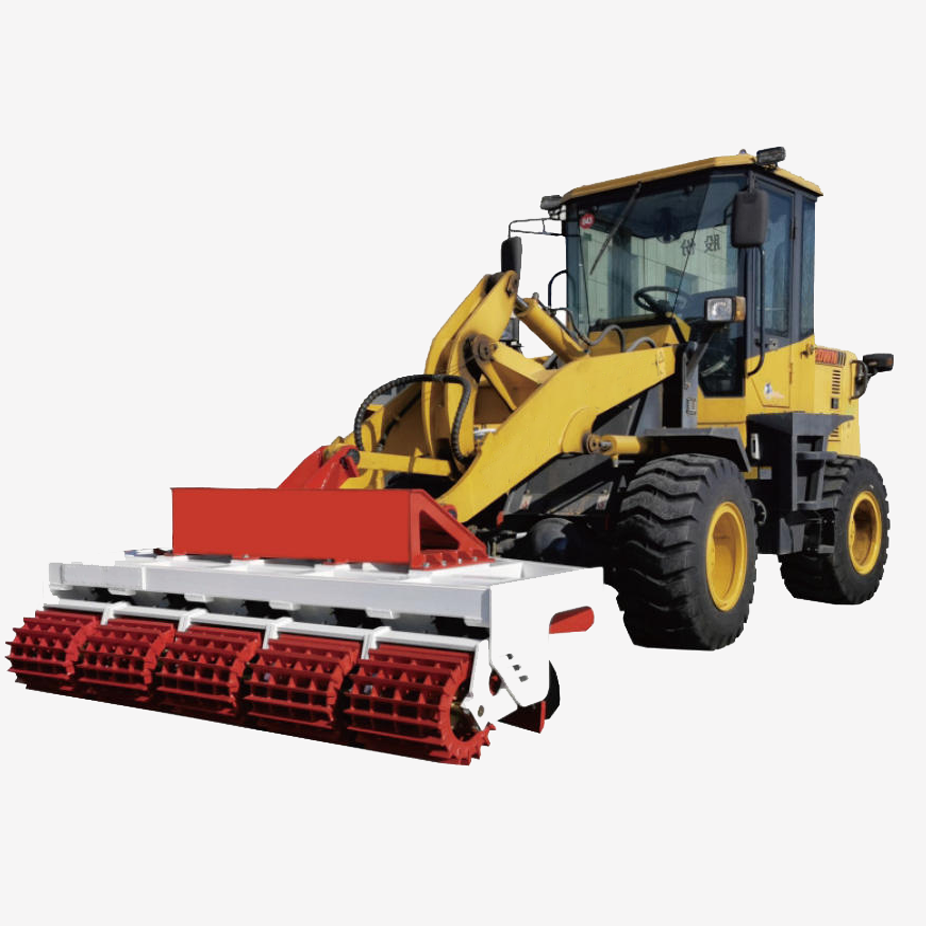

Drive Equipment | 1.5 to 2.5-ton loader |
