Heavy-Duty Dual-Row Icebreaker
Dual-Row Heavy-Duty Icebreaker

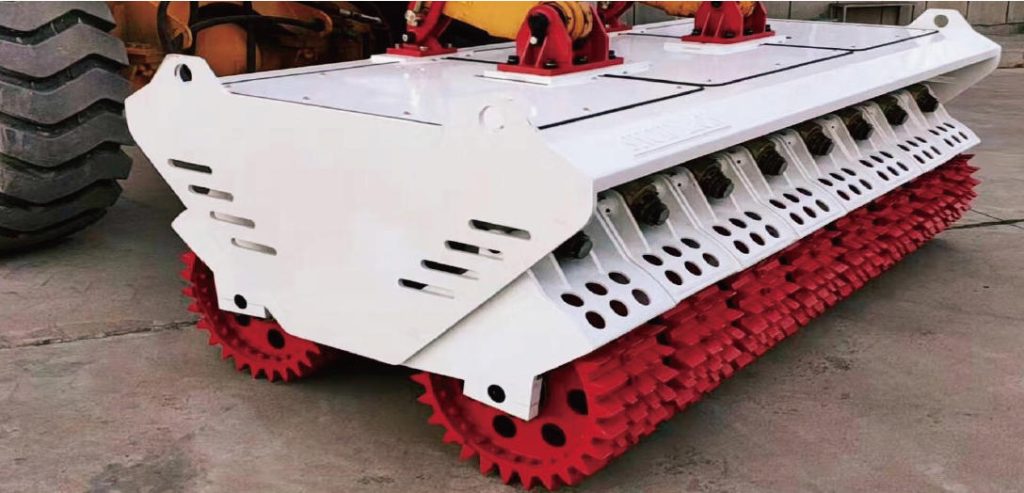

The Dual-Row Heavy-Duty Icebreaker is designed for breaking compacted snow, heavy snow, and thin ice on roads. It consists of a frame, ice-breaking wheel assemblies, spring mechanism, limit rods, and loader connection.
With two rows of staggered floating wheels, it delivers double crushing and reciprocating action, adapts to uneven surfaces, and ensures high coverage. Hollow welded-tooth wheels prevent snow clogging.

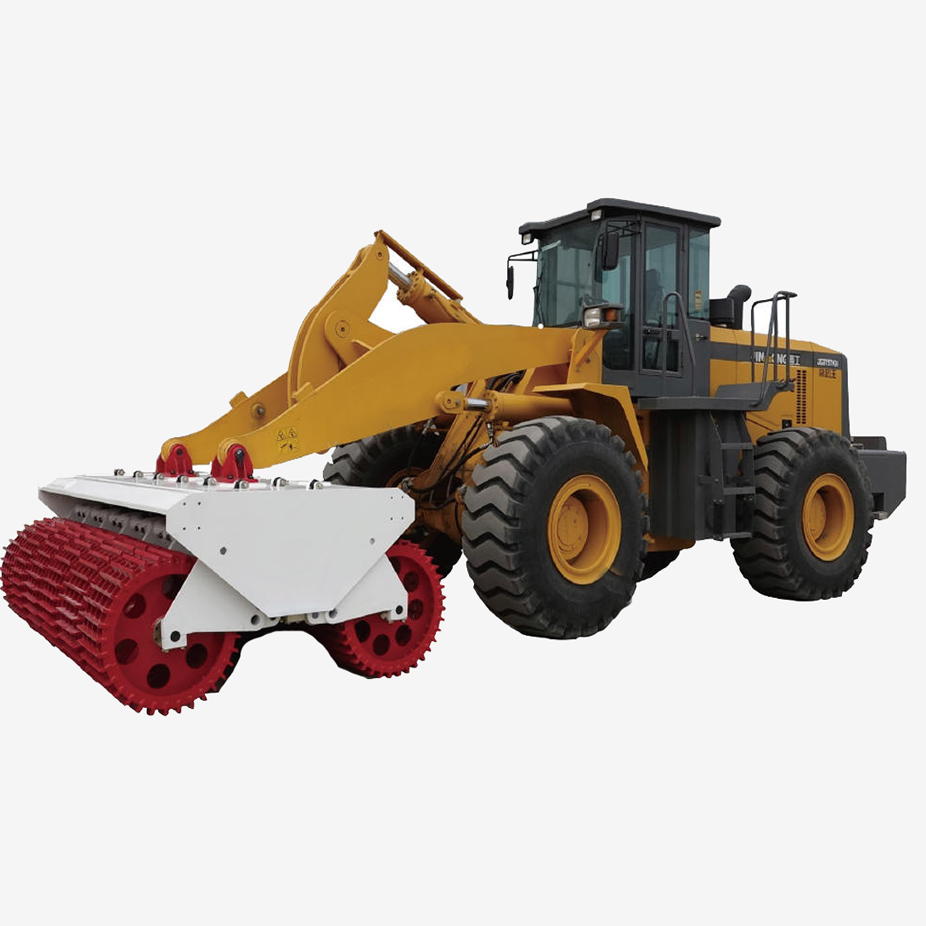

The machine mounts directly to a loader with a fast, simple connection. It requires no hydraulic or electrical control, offering easy operation, durability, impact resistance, and low maintenance. Suitable for highways, main urban roads, secondary streets, and residential areas.
Optional Wheels:
- Welded straight-tooth – For thick or heavily compacted snow.
- Welded arc-spiral – For thin snow or ice; low vibration, ideal for bridge surfaces.
- Insert-tooth – For solid ice and heavy snow.
Description
Dual-Row Heavy-Duty Icebreaker
Key Features Double-Crushing Action – Provides 100% coverage of the working surface with strong ice-breaking capability. Flexible Loader Connection – Floating frame design allows compatibility with loaders of various brands and models. | |||
Technical Specifications | |||
Models | DHRI240-12 | DHRI300-12 | DHRI300-16 |
Working Width | 2400 mm | 3000 mm | 3000 mm |
Overall Dimensions (L × W × H) | 1900 × 2622 × 1050 mm | 2171 × 3166 × 1140 mm | 1625 × 3120 × 1160 mm |
Total Weight | 3660 kg | 5400 kg | 6600 kg |
Road Contour Adaptation | 150 mm | 150 mm | 150 mm |
Ice-breaking Wheels | 12 sets (welded arc-spiral) | 12 sets (welded straight-tooth / welded arc-spiral) | 16 sets (insert-tooth) |
Drive Equipment | 3T / 5T loader | 5-ton loader | 5-ton loader |
