Fully Hydraulic Icebreaker

Fully Hydraulic Icebreaker

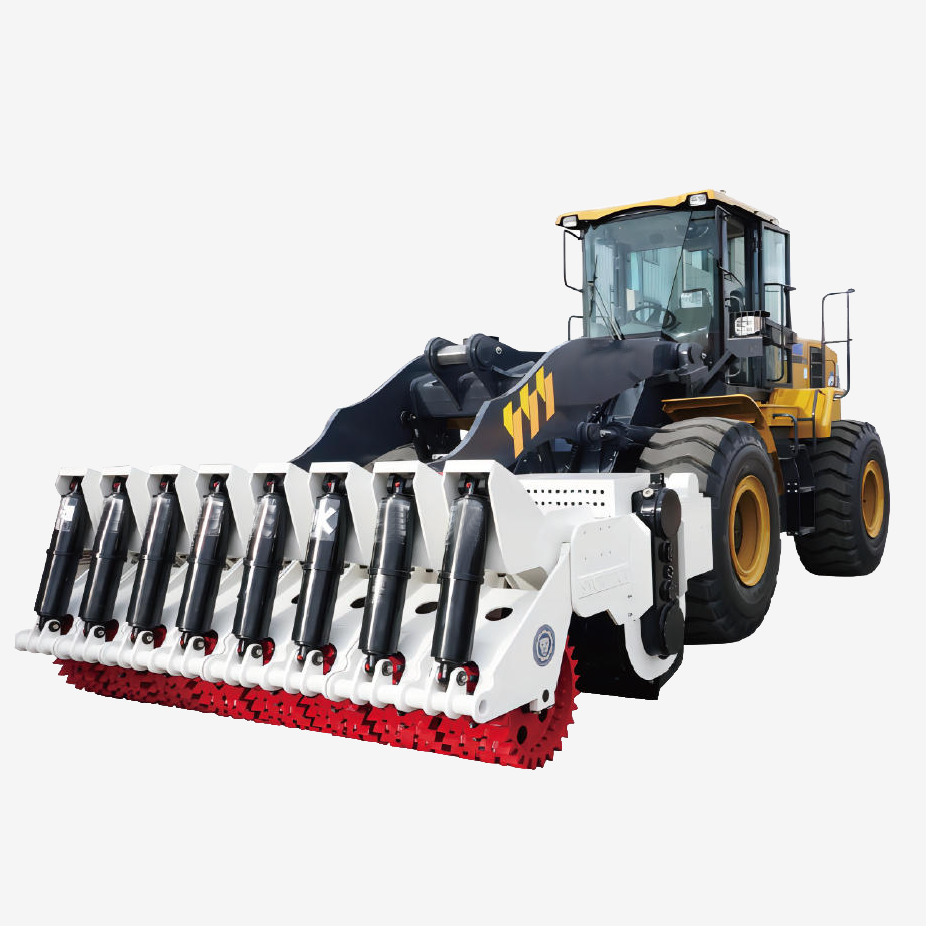

Fully Hydraulic Surface-Adaptive Icebreaker & Snow Removal Machine

The equipment is designed for icebreaking and snow removal on urban and intercity roads. Powered by a loader and hydraulically driven, it efficiently handles heavily compacted snow and solid ice. The main components are the ice-breaking system, collection system, side-discharge system, frame connection, hydraulic system, and electrical system.

Ice-breaking System: 8 independently floating wheels automatically follow road contours, ensuring thorough ice removal without damaging the pavement.

Collection System: 6 floating blades adapt to surface variations and obstacles, collecting ice and snow completely while preventing damage.

Side-Discharge System: A hydraulic motor drives a spiral conveyor to discharge crushed ice and snow efficiently to the right side.

Description

Key Features

Integrated system design – Combines crushing, collecting, and side-discharge functions, enabling complete ice and snow removal in a single operation.

High-strength icebreaking – Equipped with insert-tooth ice-breaking wheels, suitable for breaking heavily compacted snow and solid ice.

Efficient snow discharge – High-speed auger conveyor ensures long-distance side discharge of ice and snow.

Clean and protective collection – Multiple floating collection blades adapt to road contours for thorough collection without damaging the pavement.

Reliable hydraulics – Core hydraulic components use imported parts, ensuring high reliability and zero leakage.

Durable surface finish – Electrostatic coating provides enhanced resistance to salt and corrosion.

Flexible loader compatibility
– Floating connection design allows installation on loaders of different brands and models.

Reinforced bearing design – Ice-breaking wheels use built-in bearings instead of traditional bearing housings, offering greater durability and reliability.

Bidirectional operation – During reverse driving, the collection blades automatically lift, enabling efficient back-and-forth operation.

Technical Specifications
Models
HRI300-8-6
Working Width
3000 mm
Overall Dimensions (L × W × H)
2650 × 3280 × 1290 mm
Total Weight
7000 kg (excluding extension arm)
Road Contour Adaptation
+80 / -50 mm
Ice-breaking Wheels
8 sets (insert-tooth type)
Ice-breaking Wheel Size (Dia.x Width)
630 × 326 mm
Collection Blades
6 sets
Snow Discharge Method
Spiral auger discharge
Auger Speed
300–500 r/min
Discharge Angle
90°
Drive Equipment
5-ton loader
