New Mechanical Road-Profile

New Mechanical Road-Profile

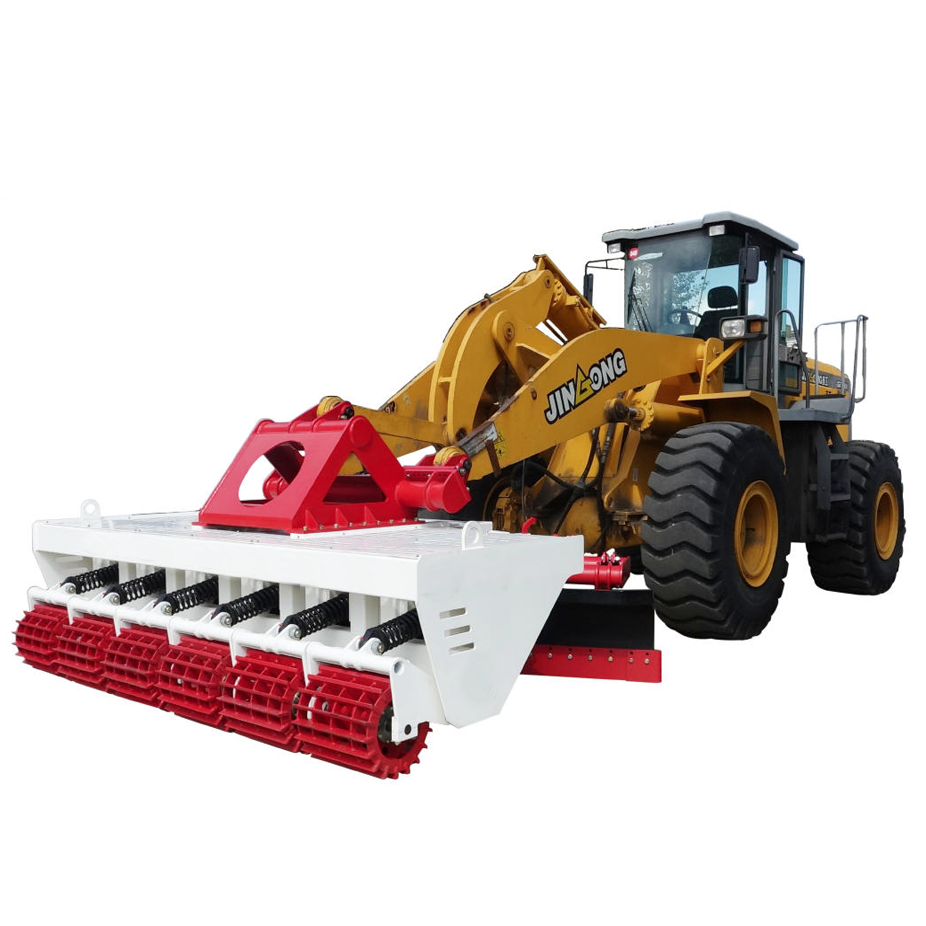

New Mechanical Road-Profile Following Icebreaker

The equipment is designed for breaking, collecting, and side-discharging compacted snow and ice–snow mixtures on roads. It consists of a crushing system, collection and side-discharge system, and frame-mounted connection system.

The front crushing system features six independently floating icebreaking wheels. Each wheel assembly moves up and down following the road surface contours, ensuring complete snow and ice crushing without damaging the pavement.

The rear collection and side-discharge system includes three independently floating collection blades. Each blade adapts to road surface variations for thorough snow collection with no residue. The system allows manual directional switching to discharge snow to the left or right. Each blade can also automatically flip backward to avoid obstacles, preventing equipment damage.

This unit can be mounted on the front of a loader or the center of a grader, enabling versatile snow and ice removal.

Description

Key Features

Innovative Dual-Structure Design: The equipment features a transverse straight-blade crushing system combined with high-angle side-discharge, an internationally pioneering layout.

Advanced Icebreaking Wheels:
 Multiple hollow-design, independently suspended wheels with high-strength spring compression effectively crush ice and snow without snow clogging or pavement damage.

Durable and Reliable Operation:
Easy to install; icebreaking teeth maintain impact resistance, low-temperature toughness, and anti-fracture properties during high-speed operation, ensuring long service life.

Precision Engineering: Structural components are designed using international modeling standards and finite element analysis for stress optimization. Manufacturing processes and materials are strictly controlled to ensure high-quality products.

Proven in Extreme Conditions:
Tested over five years under extreme cold, demonstrating excellent low-temperature durability, fatigue resistance, and ice-snow removal capability.

Technical Specifications
Models
NSRI300-6-3
Working Width
3000 mm
Overall Dimensions (L × W × H)
2500×3216×1475 mm
Total Weight
2940 kg(Welded Straight-Tooth Wheel)
Total Weight
3420 kg(Carbide-Inserted Tooth Wheel)
Road Contour Adaptation
130 mm
Ice-breaking Wheels
6 sets (welded/Carbide-Inserted Tooth Wheel)
Ice-breaking Wheel Size (Dia.x Width)
400×435 mm
Collection Blades
3 sets
Snow Discharge Method
Side-Discharge Blade
Discharge Angle
±25° left/right
Drive Equipment
3T / 5T loader
