Multi-Functional Dual-Row Icebreaker

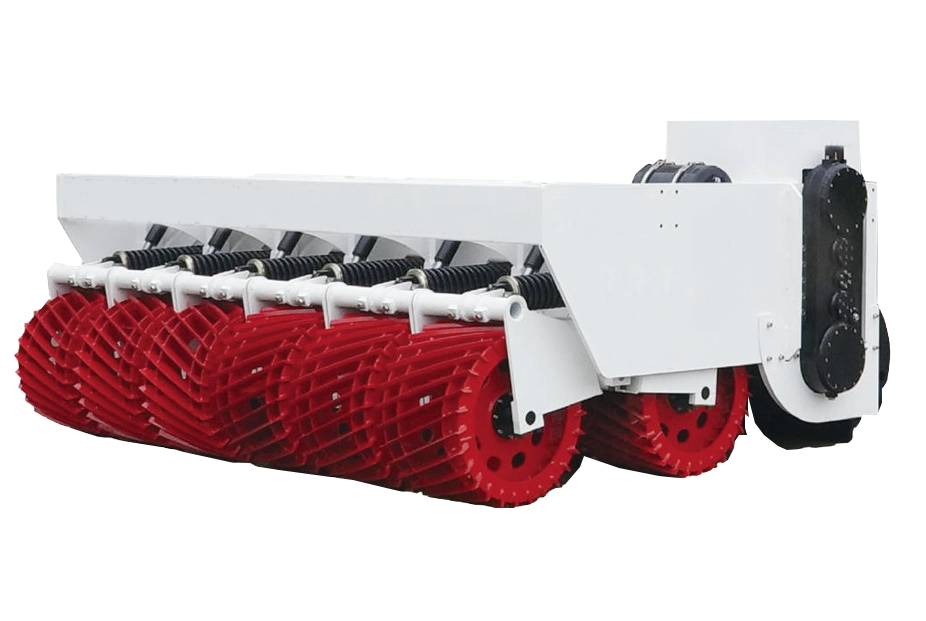

Multi-Functional Dual-Row Icebreaker

Multi-Functional Surface-Adaptive Dual-Row Wheel Icebreaker

This equipment is designed for icebreaking and snow removal on urban and intercity roads. It is powered and hydraulically driven by a loader, providing high efficiency in breaking compacted snow and thin ice. The main components include the ice-breaking system, collection system, side-discharge system, frame connection, hydraulic system, and electrical system, all integrated via the machine frame.

  • Ice-breaking System: Two rows of 12 independently floating ice-breaking wheels allow each assembly to move up and down individually, automatically following road contours. This ensures thorough ice removal without damaging the pavement.
  • Collection System: Six independently floating collection blades adapt to surface variations, collecting ice and snow completely while avoiding obstacles such as manholes or speed bumps, preventing any damage.
  • Side-Discharge System: A hydraulic motor drives a spiral conveyor through a sealed gearbox, efficiently discharging crushed ice and snow to the right side.

Description

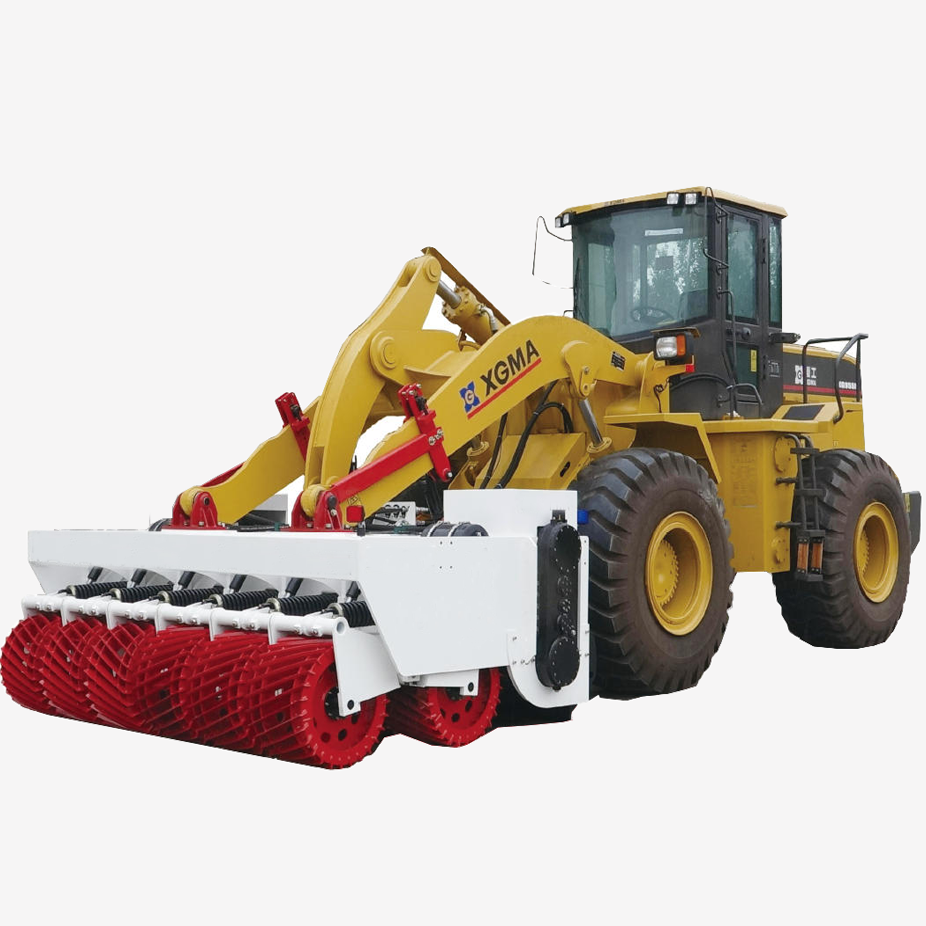

Multi-Functional Surface-Adaptive Dual-Row Icebreaker & Snow Removal Machine

Multi-Functional Surface-Adaptive Dual-Row Icebreaker & Snow Removal Machine

Key Features

Integrated system design – Combines crushing, collecting, and side-discharge functions, enabling complete ice and snow removal in a single operation.

Welded arc-spiral ice
-breaking wheels – Ideal for compacted snow and thin ice; low-impact design makes it suitable for bridge surfaces.

High-speed auger discharge – Efficiently ejects ice and snow over long distances.

Floating collection blades
– Multiple independently floating blades ensure thorough collection without damaging the pavement.

Reliable hydraulics
– Core hydraulic components use imported parts, ensuring high reliability and no leakage.

Durable surface finish
 – Electrostatic coating enhances resistance to salt and corrosion.

Flexible loader connection
 – Floating frame design allows compatibility with loaders of different brands and models.

Built-in wheel bearings
– Ice-breaking wheels use integrated bearings instead of traditional housings for greater reliability and durability.

Bidirectional operation – Collection blades automatically lift during reverse operation, enabling efficient back-and-forth work.

Technical Specifications
Models
MDRI300-12-6
Working Width
3000 mm
Overall Dimensions (L × W × H)
2800 × 3400 × 1250 mm
Total Weight
5400 kg
Road Contour Adaptation
150 mm
Ice-breaking Wheels
12 sets (welded arc-spiral type)
Ice-breaking Wheel Size (Dia.x Width)
620 × 425 mm
Collection Blades
6 sets
Snow Discharge Method
Spiral auger
Discharge Angle
90°
Drive Equipment
5-ton loader
