Surface-Adaptive
Surface-Adaptive Icebreaker

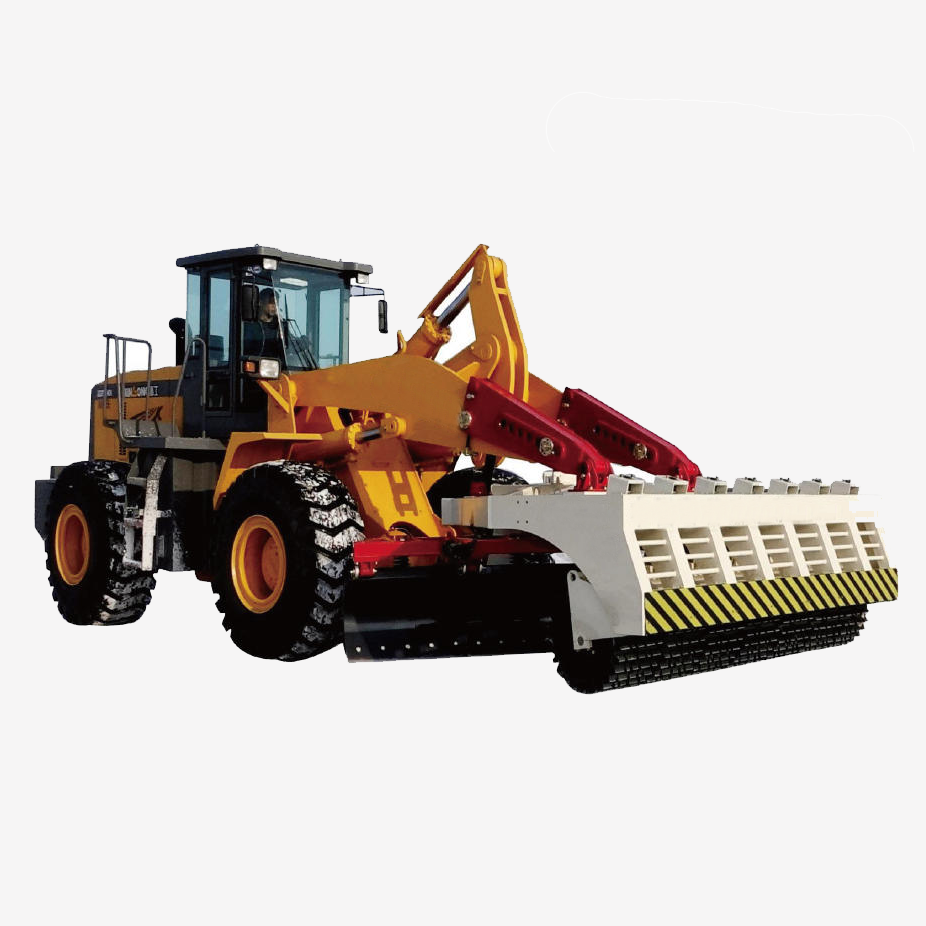

The equipment is designed for crushing compacted snow, ice–snow mixtures, and solid ice on road surfaces.

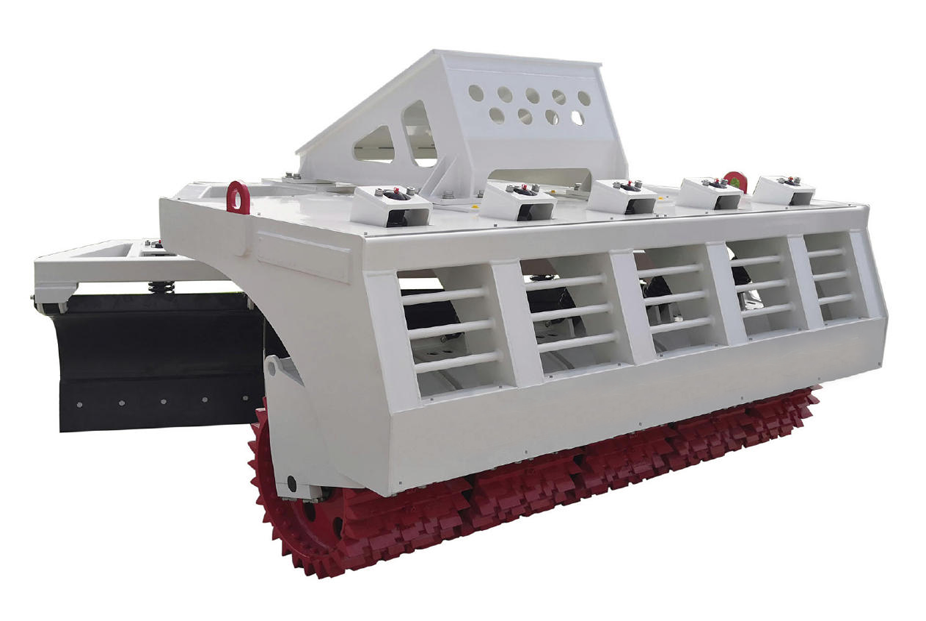

The front crushing system is equipped with seven sets of independently floating ice-breaking wheels, which can automatically adjust up and down to follow uneven road surfaces. This ensures thorough ice breaking while preventing damage to the pavement.
The rear side-discharge system features four sets of independently floating collection blades, which can be manually switched to discharge snow to either the left or right side. The blades adapt to surface contours for more complete collection, and when encountering obstacles, they automatically tilt backward to avoid collisions, thereby preventing equipment damage.
Description
Surface-Adaptive Icebreaker
Key Features Wide working width, high efficiency – Ensures fast and effective operation. All-in-one function – Breaks, collects, and side-discharges ice and snow in a single pass, clearing roads efficiently. High-strength icebreaking – Equipped with replaceable toothed ice-breaking wheels for superior crushing performance. Corrosion-resistant finish – Electrostatic coating provides excellent resistance to salt and corrosion. Flexible loader compatibility – Floating connection design allows installation on loaders of different brands and models. Durable bearing design – Ice-breaking wheels use built-in bearings instead of traditional bearing housings, ensuring greater reliability and durability. | ||
Technical Specifications | ||
Models | SRI320-7-4 | SRI240-5-3 |
Working Width | 3,200 mm | 2,400 mm |
Overall Dimensions (L × W × H) | 3175×3382×1350 mm | 2880 × 2500 × 1350 mm |
Total Weight | 5,800 kg | 3,600 kg |
Road Surface Profiling Capability | 150 mm | 150 mm |
Ice-breaking Wheels | 7 sets (insert-tooth type) | 5 sets (insert-tooth type) |
Ice-breaking Wheel Size (Dia.x Width) | 630x 425 mm | 630x 425 mm |
Collection Blades | 4 sets | 3 sets |
Snow Discharge Method | Side-discharge with blades | Side-discharge with blades |
Discharge Angle | 30° left and right | 25° left and right |
Drive Equipment | 5-ton loader | 3–5-ton loader |
