Truck-Mounted Icebreaker
Truck-Mounted Icebreaker
Truck-Mounted Icebreaking and Snow Removal Equipment
Designed for clearing ice and snow from urban expressways, main roads, secondary streets, branch roads, and intercity highways.
A front-mounted icebreaker breaks compacted ice and snow, while an optional snowplow removes loose or accumulated snow to the roadside. The equipment operates at high speed for efficient snow removal.

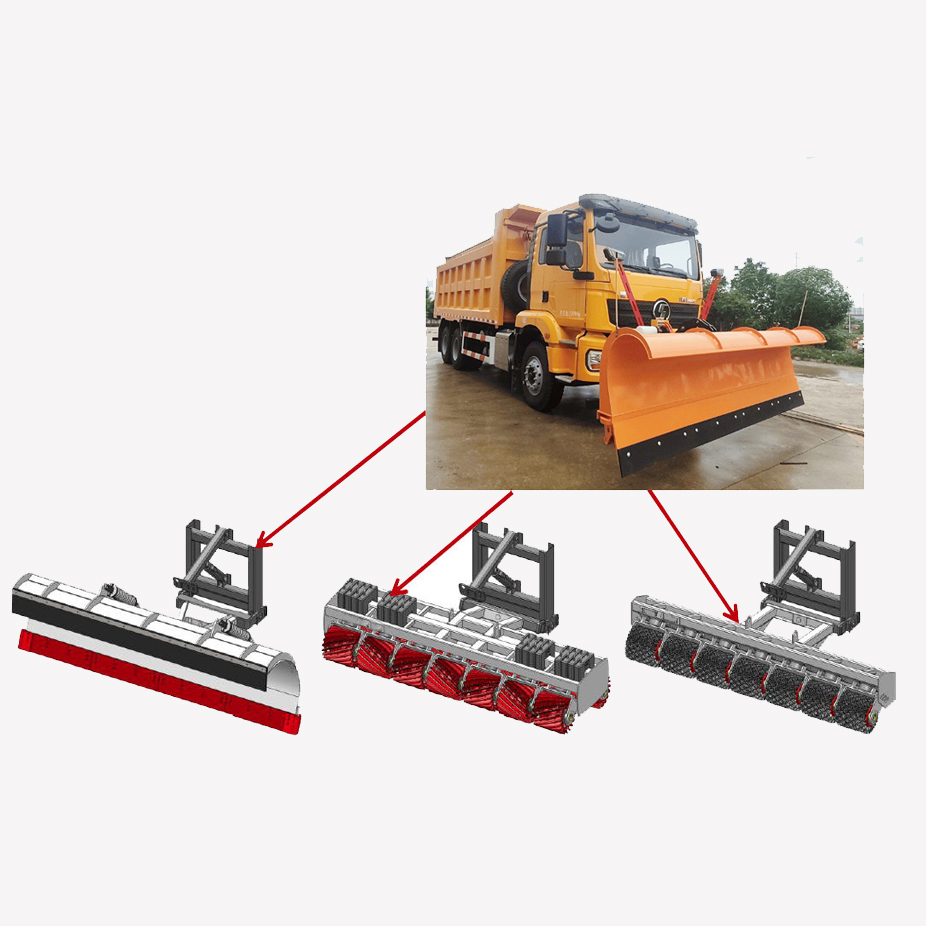

Flexible Front-Mounted Options
Depending on road and snow conditions, the truck can be equipped with three interchangeable units:
Single-Row Icebreaker: milling-pin teeth for hard ice and snow.
Dual-Row Icebreaker: front and rear rows with arc-spiral teeth for compacted or thin-layered snow.
Snowplow Blade: obstacle-avoiding, quickly displaces loose snow.
All systems follow road contours, providing strong icebreaking without damaging the pavement.
Description
Key Features Maintains truck’s original functions; quick and convenient attachment changeover. Operating speed: 40–60 km/h for efficient snow and ice removal. Reliable structure, easy maintenance, and low failure rate. Front-mounted versatility: compatible with multiple snow-clearing attachments. All hinge points are carefully engineered with bushings and damping sleeves for secure operation and long-lasting durability. Durable surface finish: electrostatic powder coating enhances resistance to salt and corrosion. High performance: ensures superior snow and ice clearing efficiency. | ||

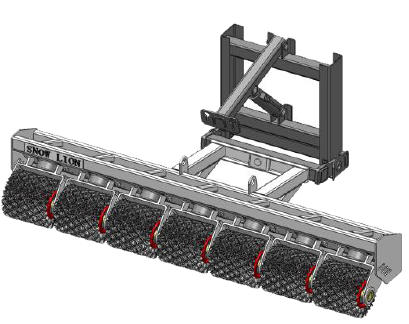

Front-Mounted Single-Row Icebreaker for Trucks and Graders | ||
 | Technical Specifications | |
Models | FSTI290 | |
Working Width | 2906 mm | |
Overall Dimensions (L × W × H) | 1590×3010×1240 mm | |
Total Weight | 1255 kg | |
Road Contour Adaptation | 70 mm | |
Ice-breaking Wheel Size (Dia.x Width) | 350×350 mm | |
Drive Equipment | Front-Mounted for Trucks and Graders | |
Working Speed | 40-60Km/h | |
Applicable Road Surface | Heavily Compacted Snow, Frozen Snow Surfaces | |

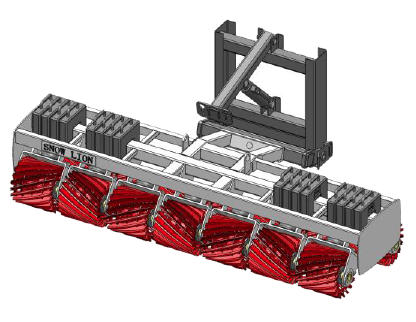

Front-Mounted Dual-Row Icebreaker for Trucks and Graders | ||
 | Technical Specifications | |
Models | FDTI298 | |
Working Width | 2980 mm | |
Overall Dimensions (L × W × H) | 1575×3100×1240 mm | |
Total Weight | 2040 kg | |
Road Contour Adaptation | 70 mm | |
Ice-breaking Wheel Size (Dia.x Width) | 350×350 mm | |
Ice-breaking Wheels | 12 sets (Welded Arc-Spiral Teeth) | |
Working Speed | 40-60Km/h | |
Drive Equipment | Front-Mounted for Trucks and Graders | |
Applicable Road Surface | Heavily Compacted Snow, Frozen Snow Surfaces | |

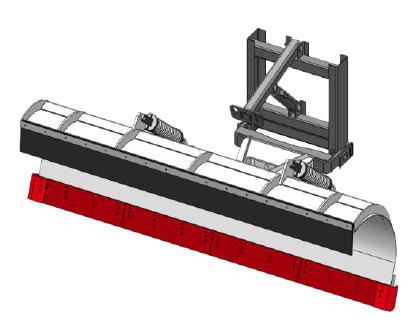

Truck-Mounted Front Snowplow | ||
 | Technical Specifications | |
Models | TFS350 | |
Working Width | 3500 mm | |
Overall Dimensions (L × W × H) | 2020×3625×1230 mm | |
Total Weight | 990 kg | |
Obstacle Avoidance | Full-Unit Flip | |
Ice-breaking Wheels | Truck Front | |
Snow Discharge | Left / Right | |
Drive Equipment | Truck Front | |
Applicable Road Surface | Loose Snow and Accumulated Snow | |
