ET3507 Telehandler

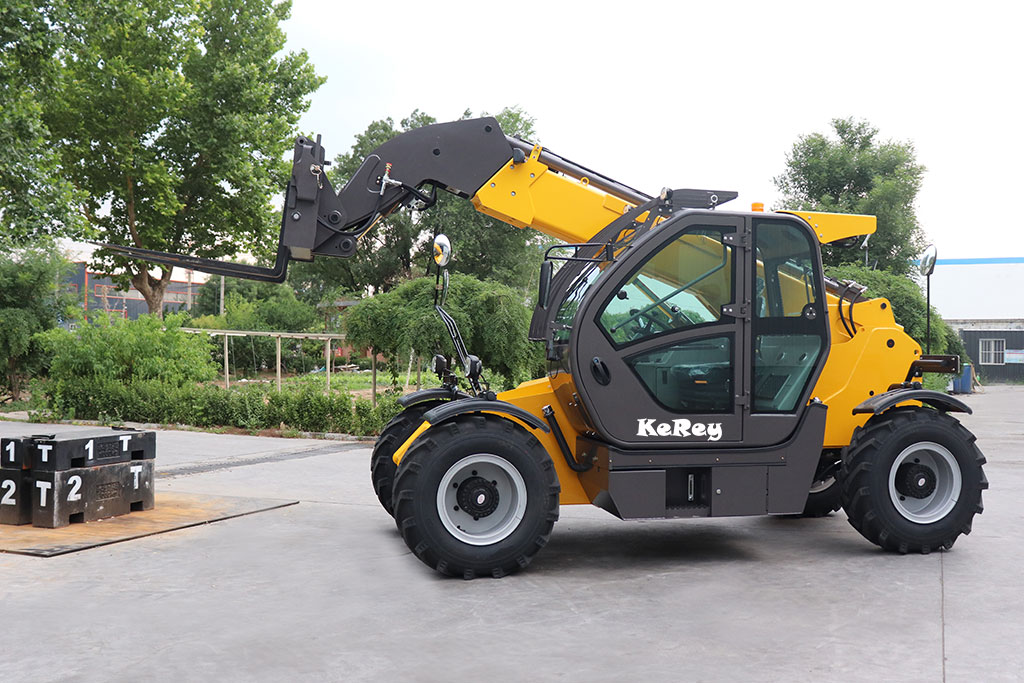

ET3507 Telehandler 3.5T 7M – Compact and Versatile Lifting Power
Discover the ET3507 Telehandler 3.5T 7M, engineered for compact lifting solutions in challenging environments. With a 3.5-ton lifting capacity and a reach of 7 meters, this telehandler is ideal for construction, agriculture, and industrial applications. Designed for superior maneuverability, the ET3507 excels in tight spaces while maintaining powerful performance. It also offers optional EU Stage 5 and EPA Tier 4 engines, allowing you to select the right emissions compliance for your project needs. Elevate your efficiency and productivity with the ET3507 Telehandler, your trusted partner for effective lifting.
Applications: Agriculture, Construction
Description
3.5t 7m Telehandler
| Capacities | |
| Max. capacity | 3500 kg |
| Max. lifting height | 7.0 m |
| Max. outreach | 3.2 m |
| Weight and dimensions | |
| Overall length to carriage(without fork) | 4.65 m |
| Length to face of forks(with fork) | 5.87 m |
| Overall width | 2.2 m |
| Overall height | 2.55 m |
| Wheelbase | 3.15 m |
| Ground clearance | 0.35 m |
| Overall cab width | 0.84 m |
| Tilt-up angle | 12 ° |
| Tilt-down angle | 114 ° |
| External turning radius(over tyres) | 4.25 m |
| Unladen weight(with fork) | 7600 kg |
| Tires type | Pneumatic |
| Standard tires | 16/70-20 |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Performances | |
| Lifting | 10 s |
| Lowering | 7 s |
| Extension | 12 s |
| Retraction | 8.6 s |
| Crowd | 4.8 s |
| Dump | 3.4 s |
| Engine | |
| Engine brand | Yuchai |
| Engine norm | National II |
| Max. fuel sulphur content | 5000 ppm |
| Engine model | YCD4M22T-105 |
| Number of cylinders / Capacity of cylinders | 4/ 4400 cm³ |
| I.C. Engine power rating/ Power | 103 Hp / 77.3 kW |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm |
| Drawbar pull (Laden) | 10000 daN |
| Transmission | |
| Transmission type | Torque converter |
| Number of gears (forward / reverse) | 2/2 |
| Max. travel speed | 35 km/h |
| Parking brake | Automatic air-cut brake |
| Service brake | Immersed multi-discs braking on front & rear axles |
| Hydraulics | |
| Hydraulic pump type | Gear pump |
| Hydraulic flow / Pressure | 100 L/min |
| Tank capacities | |
| Engine oil | 5.5L |
| Hydraulic oil | 70L |
| Fuel tank | 95L |
| Noise and vibration | |
| Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB |
| Vibration on hands / arms | < 2.50 m/s² |
| Drive system | |
| Steering wheels (front / rear) | 2/2 |
| Drive wheels (front / rear) | 2/2 |
| Safety cab homologation | FOPS level 2 cab |
 |  |  |
