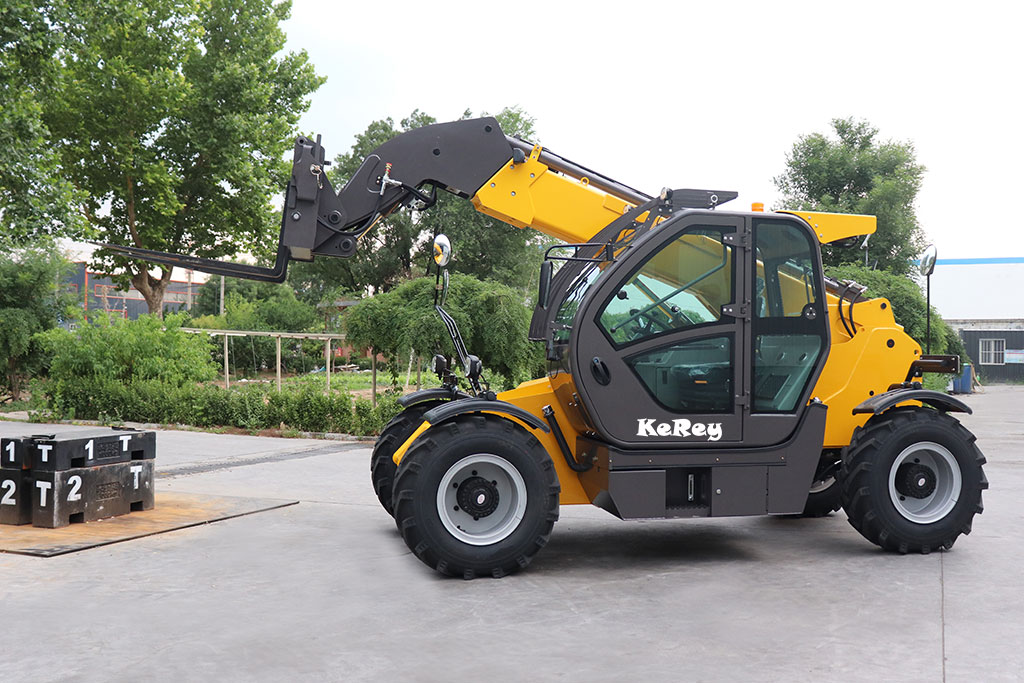

ET3510 Telehandler
ET3510 Telehandler 3.5T 10M – Flexible Lifting Solution with Optional EU Stage 5 & EPA Tier 4 Engines
Introducing the ET3510 Telehandler 3.5T 10M, designed to provide flexible lifting solutions for a variety of applications. With a 3.5-ton capacity and a 10-meter reach, this telehandler is perfect for construction, agriculture, and industrial use. It features optional EU Stage 5 and EPA Tier 4 engines, allowing you to choose the best emission compliance for your needs without compromising on performance. Its compact design ensures exceptional maneuverability in tight spaces, making the ET3510 the ideal choice for effective and efficient heavy lifting on any job site.
Applications: Agriculture, Construction
Description
3.5t 10m Telehandler
| Capacities | |
| Max. capacity | 3500 kg |
| Max. lifting height | 10.5 m |
| Max. outreach | 6.1 m |
| Weight and dimensions | |
| Overall length to carriage(without fork) | 5.8 m |
| Length to face of forks(with fork) | 7 m |
| Overall width | 2.2 m |
| Overall height | 2.55 m |
| Wheelbase | 3.15 m |
| Ground clearance | 0.35 m |
| Overall cab width | 0.84 m |
| Tilt-up angle | 12 ° |
| Tilt-down angle | 114 ° |
| External turning radius(over tyres) | 4.25 m |
| Unladen weight(with fork) | 9500 kg |
| Tires type | Pneumatic |
| Standard tires | 16/70-20 |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Performances | |
| Lifting | 10 s |
| Lowering | 7 s |
| Extension | 12 s |
| Retraction | 8.6 s |
| Crowd | 4.8 s |
| Dump | 3.4 s |
| Engine | |
| Engine brand | Yuchai |
| Engine norm | National II |
| Max. fuel sulphur content | 5000 ppm |
| Engine model | YCD4M22T-105 |
| Number of cylinders / Capacity of cylinders | 4/ 4400 cm³ |
| I.C. Engine power rating/ Power | 114 Hp / 85 kW |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm |
| Drawbar pull (Laden) | 10000 daN |
| Transmission | |
| Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4/4 |
| Max. travel speed | 35 km/h |
| Parking brake | Automatic air-cut brake |
| Service brake | Immersed multi-discs braking on front & rear axles |
| Hydraulics | |
| Hydraulic pump type | Gear pump |
| Hydraulic flow / Pressure | 100 L/min |
| Tank capacities | |
| Engine oil | 5.5L |
| Hydraulic oil | 70L |
| Fuel tank | 95L |
| Noise and vibration | |
| Noise at driving position (LpA) | 82 dB |
| Noise to environment (LwA) | 105 dB |
| Vibration on hands / arms | < 2.50 m/s² |
| Drive system | |
| Steering wheels (front / rear) | 2/2 |
| Drive wheels (front / rear) | 2/2 |
| Safety cab homologation | FOPS level 2 cab |
 |  |  |
