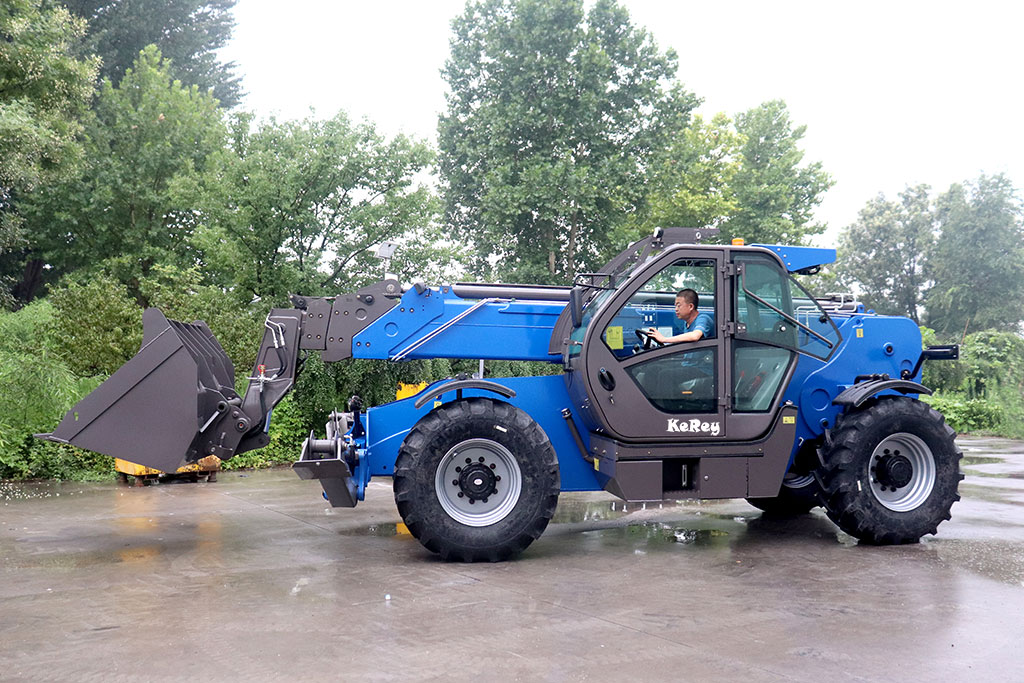

ET4018 Telehandler
ET4018 4T 18M Telehandler – Powerful 18M Reach with Eco-Friendly Efficiency
The ET4018 Telehandler offers a robust 4-ton lifting capacity and an impressive 18-meter reach, designed for challenging tasks in construction, agriculture, and industrial environments. With advanced EU Stage 5 and EPA Tier 4 engine options, the ET4018 delivers powerful, eco-conscious performance that meets strict emissions standards. Discover the perfect combination of high reach, precision, and sustainability with the ET4018 4T 18M Telehandler—your solution for efficient and reliable heavy lifting.
Applications: Agriculture, Construction
Description
4t 18m Telehandler
| Capacities | |
| Max. capacity | 4000 kg |
| Max. lifting height | 17.6 m |
| Max. outreach | 12.8 m |
| Weight and dimensions | |
| Overall length to carriage(without fork) | 6.4 m |
| Length to face of forks(with fork) | 7.62 m |
| Overall width | 2.4 m |
| Overall height | 2.55 m |
| Wheelbase | 3.15 m |
| Ground clearance | 0.38 m |
| Overall cab width | 0.84 m |
| Tilt-up angle | 12 ° |
| Tilt-down angle | 114 ° |
| External turning radius(over tyres) | 4.1 m |
| Unladen weight(with fork) | 11870 kg |
| Tires type | Tubeless |
| Standard tires | 440/80-24 |
| Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Performances | |
| Lifting | 16 s |
| Lowering | 12 s |
| Extension | 16 s |
| Retraction | 13 s |
| Crowd | 4 s |
| Dump | 4 s |
| Engine | |
| Engine brand | Yuchai |
| Engine norm | National II |
| Max. fuel sulphur content | 5000 ppm |
| Engine model | YCD4J22T-125 |
| Number of cylinders / Capacity of cylinders | 4/ 4400 cm³ |
| I.C. Engine power rating/ Power | 114 Hp / 85 kW |
| Max. torque / Engine rotation | 400 Nm @ 1400 rpm |
| Drawbar pull (Laden) | 7850 daN |
| Transmission | |
| Transmission type | Torque converter |
| Number of gears (forward / reverse) | 4/4 |
| Max. travel speed | 40 km/h |
| Parking brake | Automatic air-cut brake |
| Service brake | Immersed multi-discs braking on front & rear axles |
| Hydraulics | |
| Hydraulic pump type | Gear pump |
| Hydraulic flow / Pressure | 167 L/min/ 265 bar |
| Tank capacities | |
| Engine oil | 5.5L |
| Hydraulic oil | 70L |
| Fuel tank | 95L |
| Noise and vibration | |
| Noise at driving position (LpA) | 79 dB |
| Noise to environment (LwA) | 106 dB |
| Vibration on hands / arms | < 2.50 m/s² |
| Drive system | |
| Steering wheels (front / rear) | 2/2 |
| Drive wheels (front / rear) | 2/2 |
| Safety cab homologation | FOPS level 2 cab |
