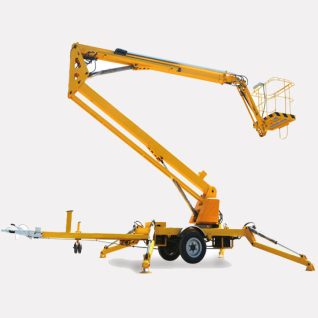

ETAL14
Description
| Model | ETAL14 |
| Max Working Height | 16 m |
| Max Platform Height | 14 m |
| Lift Capacity | 200 kg |
| Maxi. Working Distance | 8.5 m |
| Platform Size | 1.2×0.8×1.1 m |
| Transport Length | 6.0×1.73×2.1 m |
| Outrigger Span | 3.97×4.18 m |
| Turntable Rotation | 360° continuous |
| Platform Rotation Angle | 160° |
| Tyre | 215/75R16C |
| Control | Hydraulic |
| Total Weight | 2,350 kg |
| Diesel Engine | 12 Hp |
| Dc Pumping Station | 24 V/ 4.5 kw |
| Storage Battery | 4x 6 V/ 180 ah |
| AC | 380V/ 1.5 kw 220V/ 2.2 kw (customizable) |
Configuration:
| Automatic hydraulic support legs | Outtrigger controller |
| Trailer structure | Lower ontrollers below the platform |
| Obstacles can be overcome | Upper control handle |
| Three-dimensional rotating lifting device | 360° Rotating platform |
| Automatic leveling device | Operating device |
Optional:
| Battery lift |
| Diesel+DC(no battery) |
| Diesel+DC(have battery) |
| Diesel+AC+DC |
| AC+DC |
