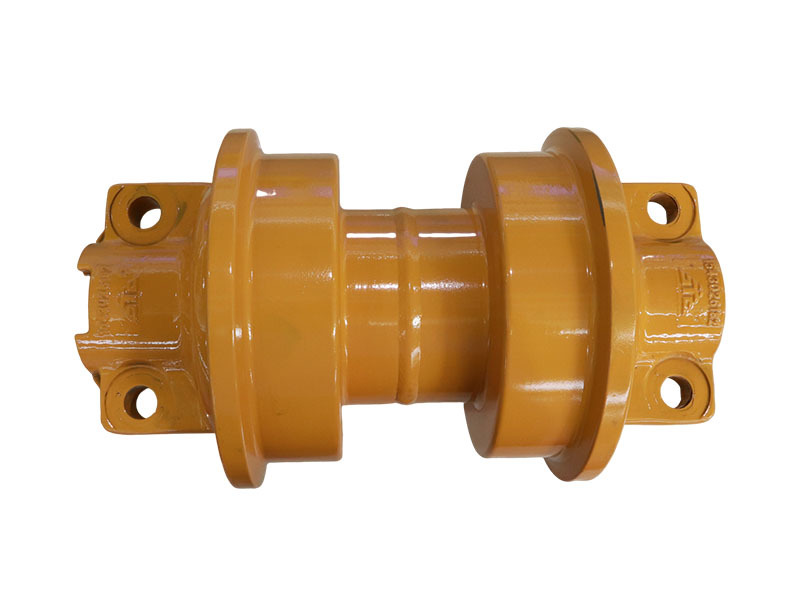

Bulldozer Track Roller

Description

Model	Type	A	B	C	D	E	F	G	H	I	J	K	M	O	P
BR382-1A	1	382	310	208	173	233	200	152	110	237	﹘	28	﹘	16	18
BR382-1B	1	382	310	208	173	233	200	152	110	237	﹘	28	86	16	18
BR401-1A	1	401.2	320	235	200	244	210	157	114	258	﹘	34	﹘	16	19.5
BR401-1B	1	401.2	320	235	200	244	210	157	114	258	﹘	34	101.6	16	19.5
BR448-1A	1	448.5	380	251.2	209.2	257	222	182	136	306	﹘	34	﹘	16	23.5
BR448-1B	1	448.5	380	251.2	209.2	257	222	182	136	306	﹘	34	106	16	23.5
BR504-1A	1	504.3	408	292	244	298	255	190	140	320	﹘	40	﹘	18	26
BR504-1B	1	504.3	408	292	244	298	255	190	140	320	﹘	40	120	18	26
BR536-2A	2	536	511.5	350	297	312	278	﹘	﹘	396	68	7	﹘	﹘	﹘
BR536-2B	2	536	511.5	350	297	312	278	﹘	﹘	396	68	7	131	﹘	﹘
The above are standard dimensions and can be customized upon request.
