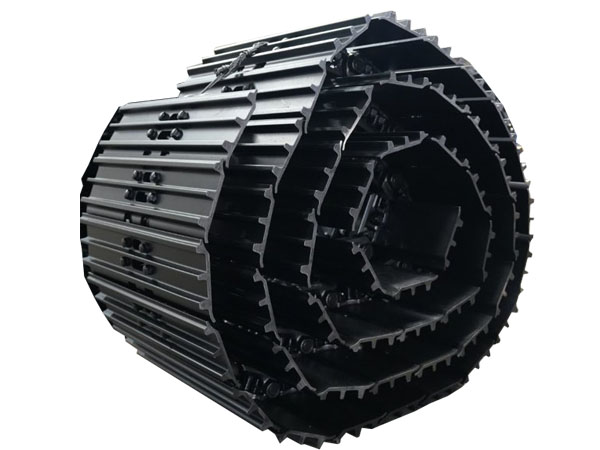

Track Assembly
Track Assembly
Description

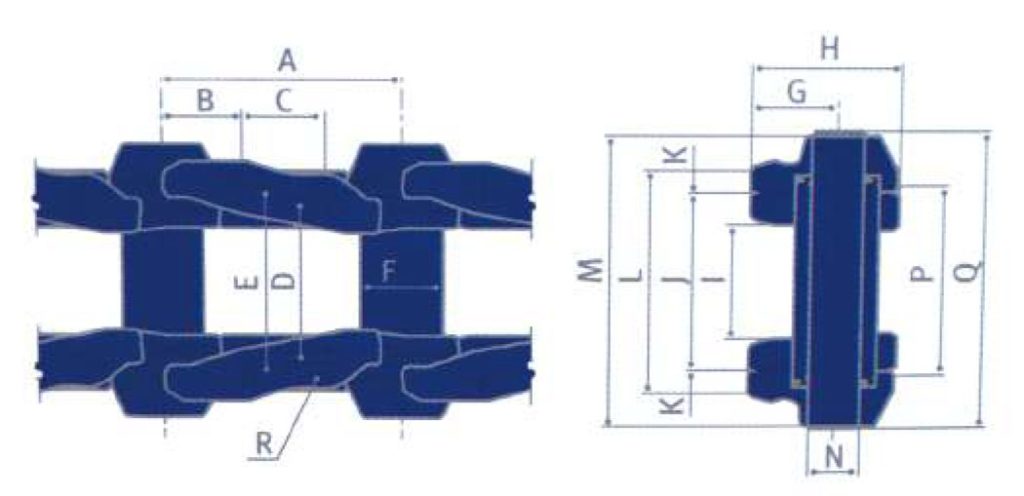

Model | Track Pitch (A) | Dimensions | |||||||||||||
B | C | D | E | F(Ø) | G | H | I | K | L | M | N(Ø) | Q | R(Ø) | ||
E90A1 | 90 | 22.2 | 23.0 | 46.0 | 27.0 | 0.5 | 59.0 | 74.0 | 14.2 | 77.0 | |||||
E102A1 | 101.6 | 32.2 | 30.0 | 60.0 | 32.0 | 0.6 | 73.8 | 87.8 | 19.2 | 92.5 | |||||
E135A1 | 135.0 | 42.4 | 43.4 | 72.0 | 99.0 | 39.0 | 36.0 | 70.0 | 48.0 | 0.4 | 102.0 | 134.0 | 22.3 | 140.0 | 13.2 |
E135B1 | 135.0 | 41.0 | 46.0 | 64.0 | 94.0 | 35.1 | 35.5 | 65.0 | 40.0 | 0.6 | 85.0 | 120.2 | 22.1 | 123.0 | 13.5 |
E135C1 | 135.0 | 40.0 | 46.0 | 80.0 | 104.0 | 35.0 | 36.0 | 67.0 | 53.6 | 1.0 | 104.0 | 136.0 | 22.3 | 140.0 | 13.5 |
E140A1 | 140.0 | 44.0 | 52.0 | 86.0 | 86.0 | 37.0 | 38.0 | 70.0 | 57.8 | 0.6 | 109.9 | 133.0 | 25.2 | 137.0 | 12.3 |
E154A1 | 154.0 | 44.0 | 57.0 | 73.0 | 89.0 | 41.3 | 40.5 | 74.0 | 45.0 | 1.2 | 101.1 | 125.0 | 24.1 | 131.0 | 14.2 |
E154B1 | 154.0 | 48.0 | 55.0 | 90.0 | 90.0 | 46.2 | 42.0 | 80.0 | 62.0 | 0.8 | 117.4 | 150.6 | 30.3 | 155.0 | 14.3 |
E171A1 | 171.45 | 55.2 | 60.3 | 180.0 | 108.0 | 53.8 | 53.5 | 94.5 | 72.2 | 1.2 | 135.2 | 178.6 | 36.6 | 183.0 | 16.2 |
E171B1 | 171.45 | 56.4 | 58.7 | 125.4 | 144.5 | 54.0 | 58.8 | 101.6 | 90.5 | 0.6 | 168.0 | 203.3 | 36.7 | 206.4 | 16.1 |
E171C1 | 171.45 | 55.6 | 60.3 | 107.9 | 107.9 | 50.6 | 50.0 | 90.0 | 70.5 | 0.6 | 135.1 | 171.9 | 33.6 | 178.0 | 16.4 |
E171D1 | 171.45 | 55.6 | 60.3 | 107.9 | 107.9 | 50.4 | 49.5 | 89.0 | 72.9 | 1.0 | 135.6 | 168.9 | 33.5 | 175.0 | 16.2 |
E175A1 | 175.0 | 54.0 | 57.0 | 86.4 | 102.4 | 46.0 | 47.0 | 86.0 | 52.4 | 1.2 | 117.8 | 162.0 | 30.0 | 173.0 | 16.3 |
E175B1 | 175.0 | 54.0 | 57.0 | 86.4 | 102.4 | 50.2 | 49.0 | 90.0 | 52.4 | 1.2 | 117.5 | 162.0 | 32.0 | 173.0 | 16.3 |
E175C1 | 175.41 | 57.3 | 58.7 | 125.4 | 114.5 | 58.8 | 60.2 | 103.2 | 82.0 | 0.6 | 165.3 | 209.2 | 36.6 | 212.0 | 18.1 |
E190A1 | 190.0 | 58.0 | 62.0 | 124.4 | 160.4 | 59.0 | 58.0 | 105.0 | 84.8 | 1.2 | 169.8 | 207.0 | 38.0 | 212.0 | 20.3 |
E190B1 | 190.0 | 58.0 | 62.0 | 124.4 | 160.4 | 59.0 | 58.0 | 105.0 | 82.8 | 1.2 | 170.4 | 205.2 | 38.0 | 213.0 | 20.3 |
E190B2 | 190.0 | 58.0 | 62.0 | 124.4 | 160.4 | 59.0 | 58.0 | 105.0 | 80.7 | 1.2 | 171.3 | 211.9 | 38.0 | 220.0 | 20.3 |
E190C1 | 190.0 | 58.0 | 62.0 | 124.4 | 160.4 | 59.0 | 57.0 | 104.0 | 82.8 | 0.6 | 163.6 | 207.0 | 38.0 | 212.0 | 18.2 |
E190D1 | 190.0 | 58.0 | 69.0 | 119.6 | 155.6 | 58.7 | 60.0 | 106.0 | 82.6 | 1.5 | 167.7 | 201.6 | 36.6 | 207.0 | 20.8 |
E190E1 | 190.0 | 58.0 | 69.0 | 119.6 | 155.6 | 58.7 | 60.0 | 106.0 | 82.6 | 1.5 | 166.8 | 205.6 | 36.6 | 211.0 | 20.8 |
E190F1 | 190.0 | 58.0 | 62.0 | 119.6 | 155.6 | 59.0 | 60.0 | 110.0 | 82.5 | 1.5 | 166.7 | 201.5 | 38.0 | 207.0 | 20.8 |
E203A1 | 203.2 | 58.0 | 72.0 | 138.4 | 178.4 | 66.7 | 64.0 | 116.4 | 100.8 | 0.8 | 189.0 | 237.4 | 44.5 | 245.0 | 20.2 |
E203B1 | 203.2 | 58.0 | 72.0 | 138.4 | 178.4 | 66.7 | 64.0 | 116.4 | 100.8 | 0.8 | 193.8 | 237.4 | 44.5 | 245.0 | 20.2 |
E203C1 | 203.2 | 58.0 | 72.0 | 138.4 | 178.4 | 66.9 | 64.0 | 116.4 | 102.0 | 1.4 | 191.5 | 230.8 | 44.7 | 252.0 | 22.3 |
E203D1 | 202.8 | 62.0 | 72.0 | 129.0 | 179.0 | 64.0 | 64.0 | 115.0 | 92.0 | 1.5 | 185.3 | 226.0 | 42.0 | 230.0 | 21.0 |
E216A1 | 216.0 | 63.0 | 76.2 | 140.4 | 178.4 | 66.5 | 64.0 | 116.0 | 102.0 | 1.4 | 191.6 | 233.6 | 44.6 | 242.0 | 22.3 |
E216B1 | 216.0 | 64.3 | 76.2 | 146.0 | 184.0 | 71.4 | 70.0 | 129.0 | 103.1 | 1.2 | 203.2 | 246.3 | 47.0 | 252.0 | 24.3 |
E216C1 | 216.0 | 63.0 | 76.2 | 140.4 | 178.4 | 66.5 | 64.0 | 116.0 | 102.0 | 1.4 | 191.6 | 233.6 | 44.6 | 242.0 | 22.3 |
E216D1 | 216.0 | 69.0 | 76.0 | 140.0 | 190.0 | 67.9 | 68.4 | 124.0 | 100.7 | 1.5 | 200.8 | 241.7 | 46.0 | 246.5 | 23.0 |
E216E1 | 215.9 | 64.3 | 76.3 | 146.0 | 184.0 | 71.0 | 70.0 | 129.0 | 108.5 | 1.5 | 201.1 | 245.1 | 47.0 | 252.0 | 22.3 |
E216F1 | 215.9 | 69.0 | 76.0 | 146.0 | 190.0 | 67.9 | 68.4 | 124.0 | 100.7 | 1.5 | 200.8 | 241.7 | 46.0 | 246.5 | 23.0 |
E228A1 | 228.6 | 71.4 | 76.2 | 140.0 | 194.0 | 71.0 | 70.0 | 129.0 | 106.0 | 1.4 | 202.2 | 248.2 | 47.0 | 252.0 | 24.3 |
E230A1 | 260.35 | 88.0 | 76.2 | 184.2 | 235.0 | 85.0 | 79.0 | 152.0 | 133.4 | 1.5 | 266.2 | 311.4 | 57.2 | 319.0 | 27.3 |
E230B1 | 260.35 | 88.0 | 76.2 | 184.2 | 235.0 | 85.0 | 86.0 | 159.0 | 133.4 | 1.5 | 266.2 | 311.4 | 57.2 | 319.0 | 30.3 |
The above are standard dimensions and can be customized upon request. | |||||||||||||||
